Delivers what it promises!
ULTIMATE R 1300 valve cover and cylinder protectors

Function and product features

• Reliable protection of the valve covers to reduce the risk of damage caused by stone chips, tip-overs or manoeuvring
• Precisely manufactured shape, following the contour of the valve cover with minimal clearance
• Made from fibre-reinforced, impact-resistant high-performance plastic
• Structurally integrated, impact-absorbing segments on the inside
• Prevents load peaks by distributing occurring forces and torques evenly across the shell structure and several segments

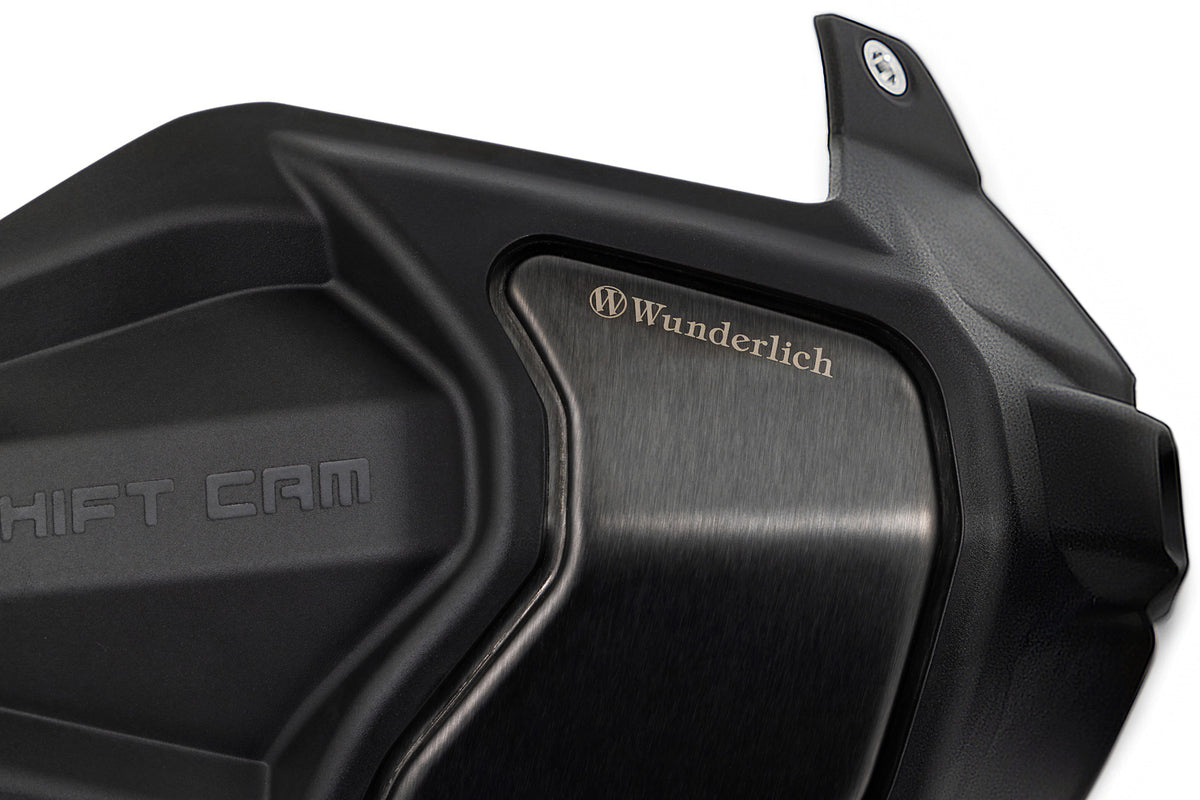

• Form-fit stainless steel insert that, as an additional protective element, reduces the risk of
  • the valve cover being worn through by abrasion and
  • costly secondary damage (loss of engine oil, engine damage)
• High-quality integrated design that blends seamlessly into the motorcycle layout
• Complete with mounting kit

Note regarding the BMW Standard or Option 719 ignition coil covers
Our valve cover and cylinder protectors additionally take over the function of the standard BMW Standard or Option 719 ignition coil covers. These are simply removed before fitting our protectors.

Technical data

• Material
  • High-quality, impact-resistant, fibre-reinforced high-performance plastic, precision manufactured with integrated impact-absorbing segments with specifically matched Shore hardness*)
  • Stainless steel insert
• Colour
  • Protector
    • Black
  • Stainless steel application
    • Black

Your Wunderlich benefits

• Wunderlich premium product. Small batches. Handcrafted.
• Wunderlich Design. Integrated and functional.
• Made in Europe
• Wunderlich 5-year warranty

Reduced to the essentials: Maximum protection.

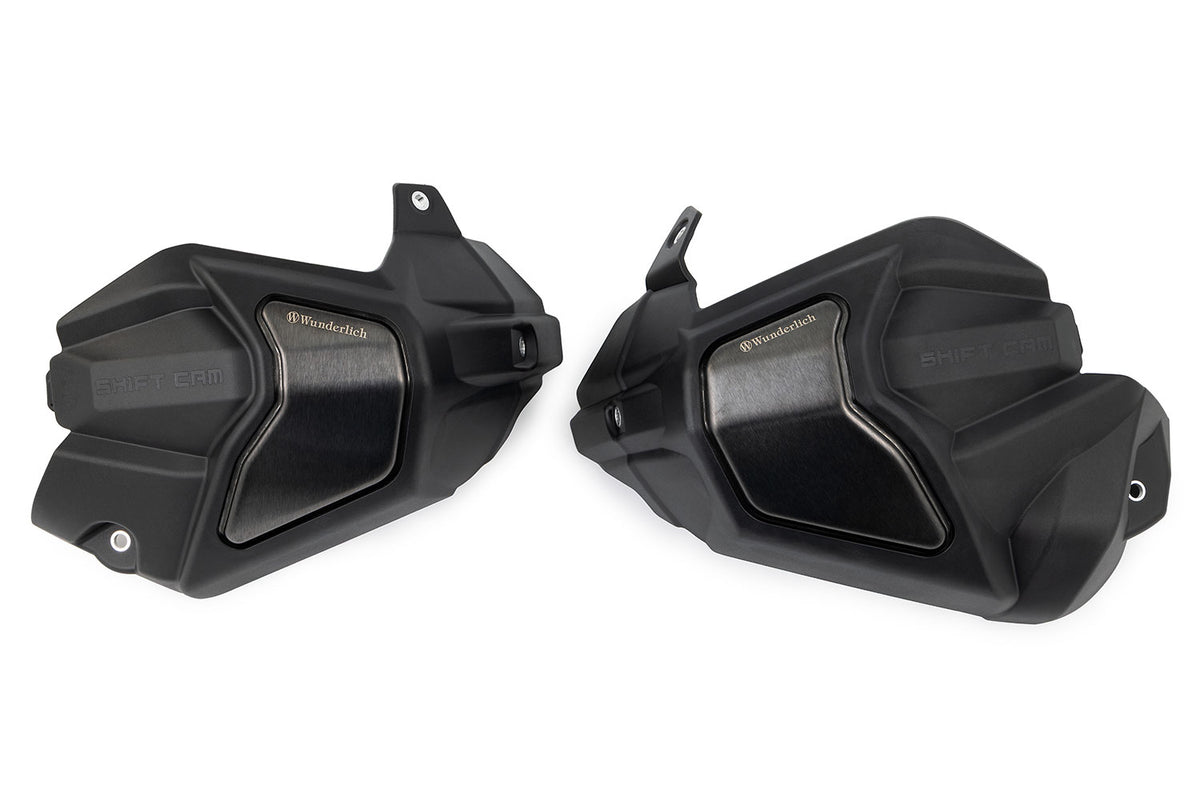

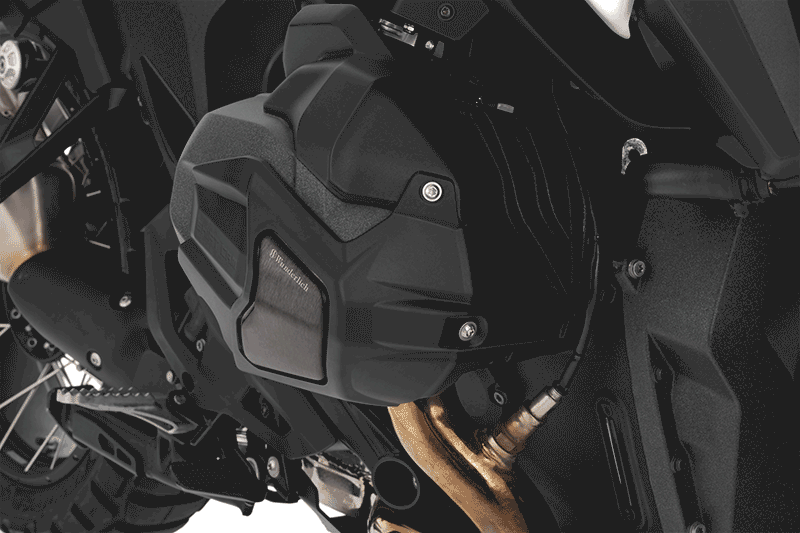

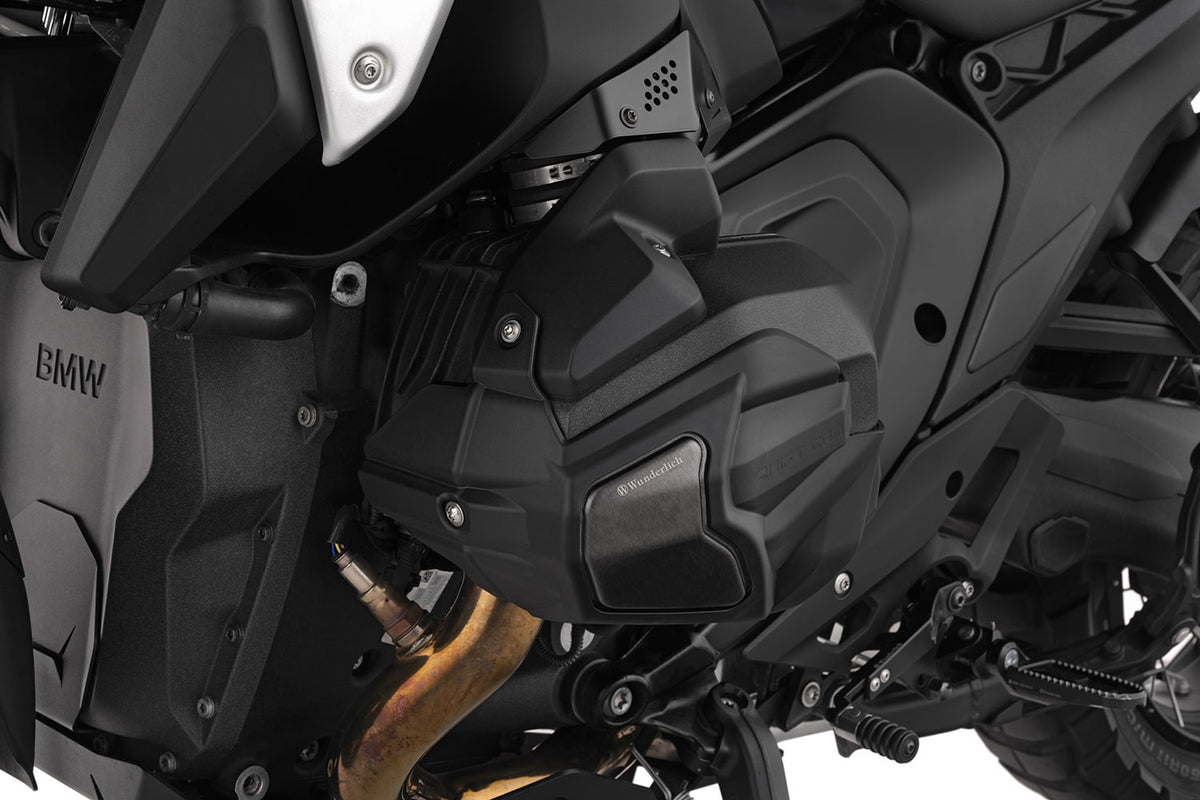

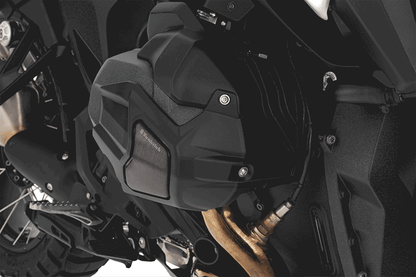

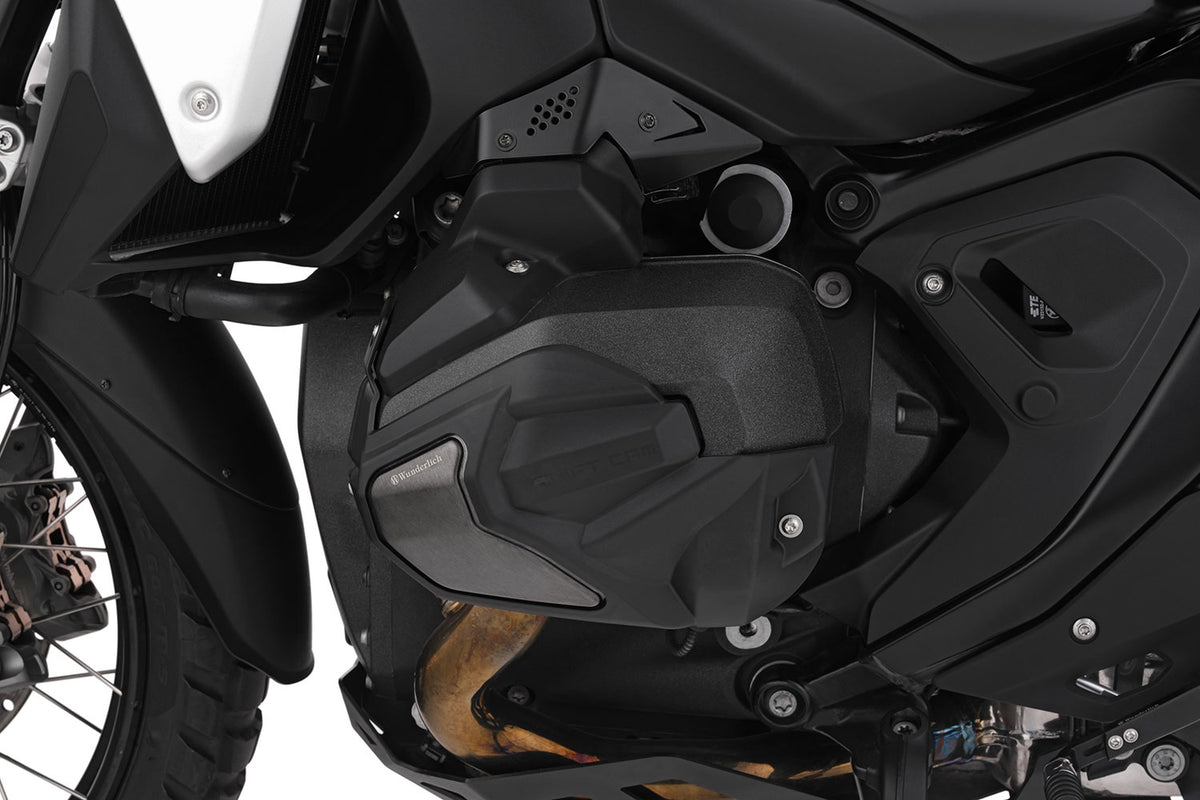

Our ULTIMATE R 1300 valve cover and cylinder protectors

Effective protection for the exposed valve covers – developed as a discreet alternative or as an addition to a protection bar

The cylinders of a BMW Boxer are exposed. Stone chips, a tip-over or brushing against a wall while manoeuvring in confined spaces can quickly leave their mark on the valve covers.

As the valve covers are force-fit mounted, they can deform in the event of an impact – with the risk of leaks or damage to the sensitive ShiftCam valve train. This is exactly where our ULTIMATE R 1300 protectors come in.

The protectors follow the contours of the valve covers precisely with minimal clearance. The impact-resistant protector is made from fibre-reinforced high-performance plastic. Segments made from a high-temperature-resistant, elastic material are integrated on the inside. They absorb external forces and distribute them evenly across the shell structure of the protector – effectively reducing force and torque peaks.

A form-fit stainless steel protective insert acts as abrasion protection in the event of a serious incident. It prevents damage to the magnesium valve cover and thereby reduces the risk of oil loss and consequential engine damage. In many cases, this allows the motorcycle to remain rideable after an incident and enables the journey to continue without restriction.

Installation is straightforward using the supplied kit.
