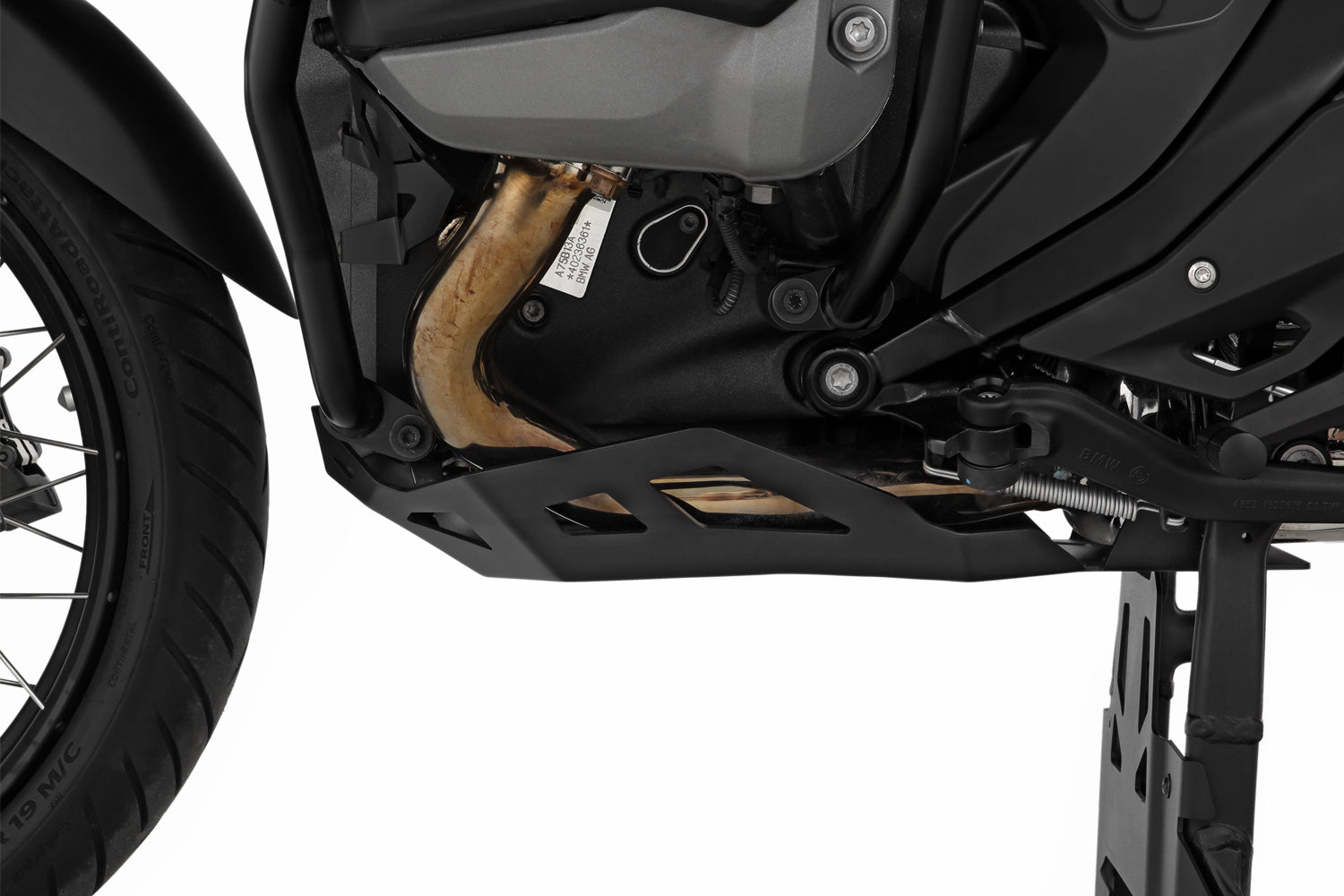

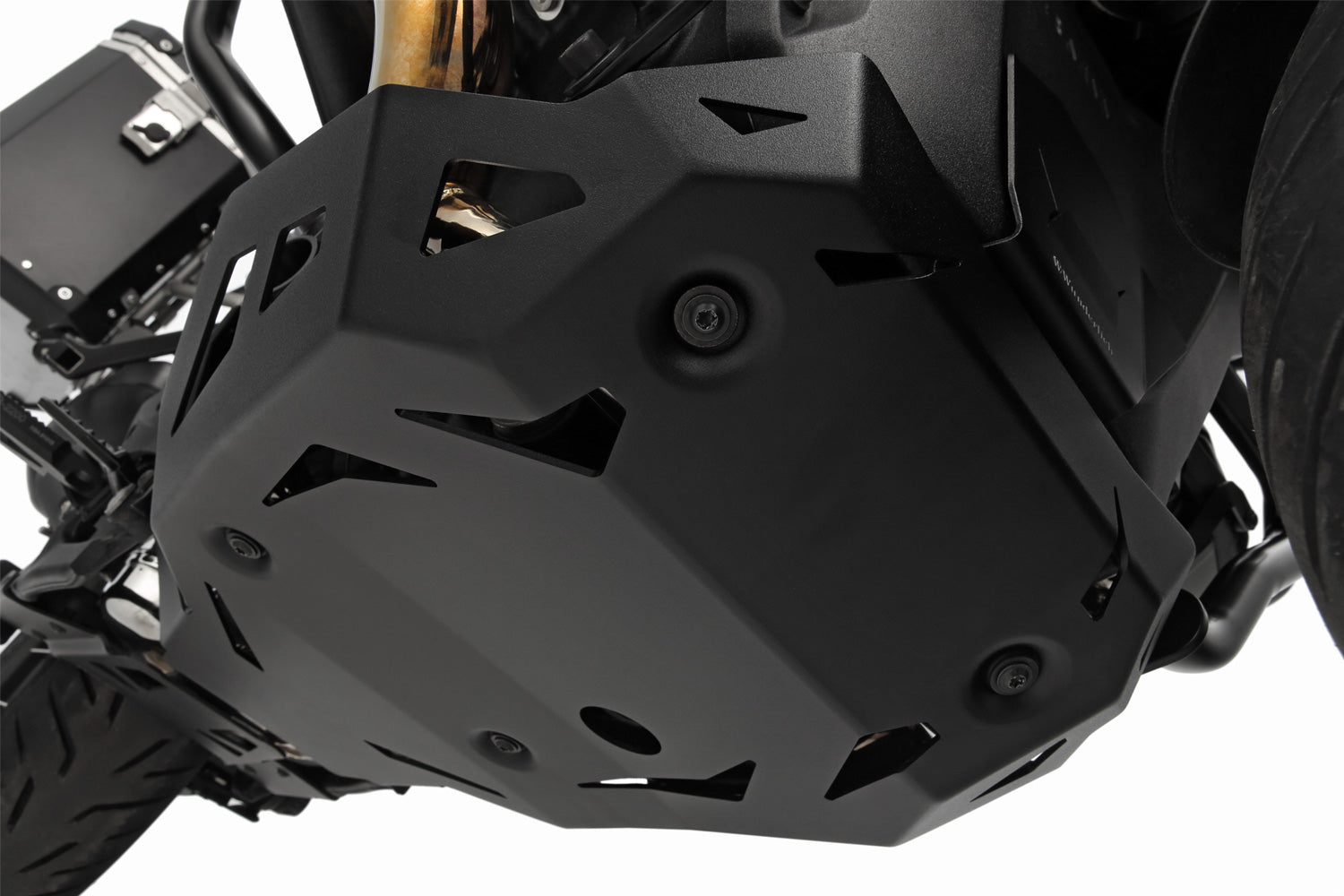

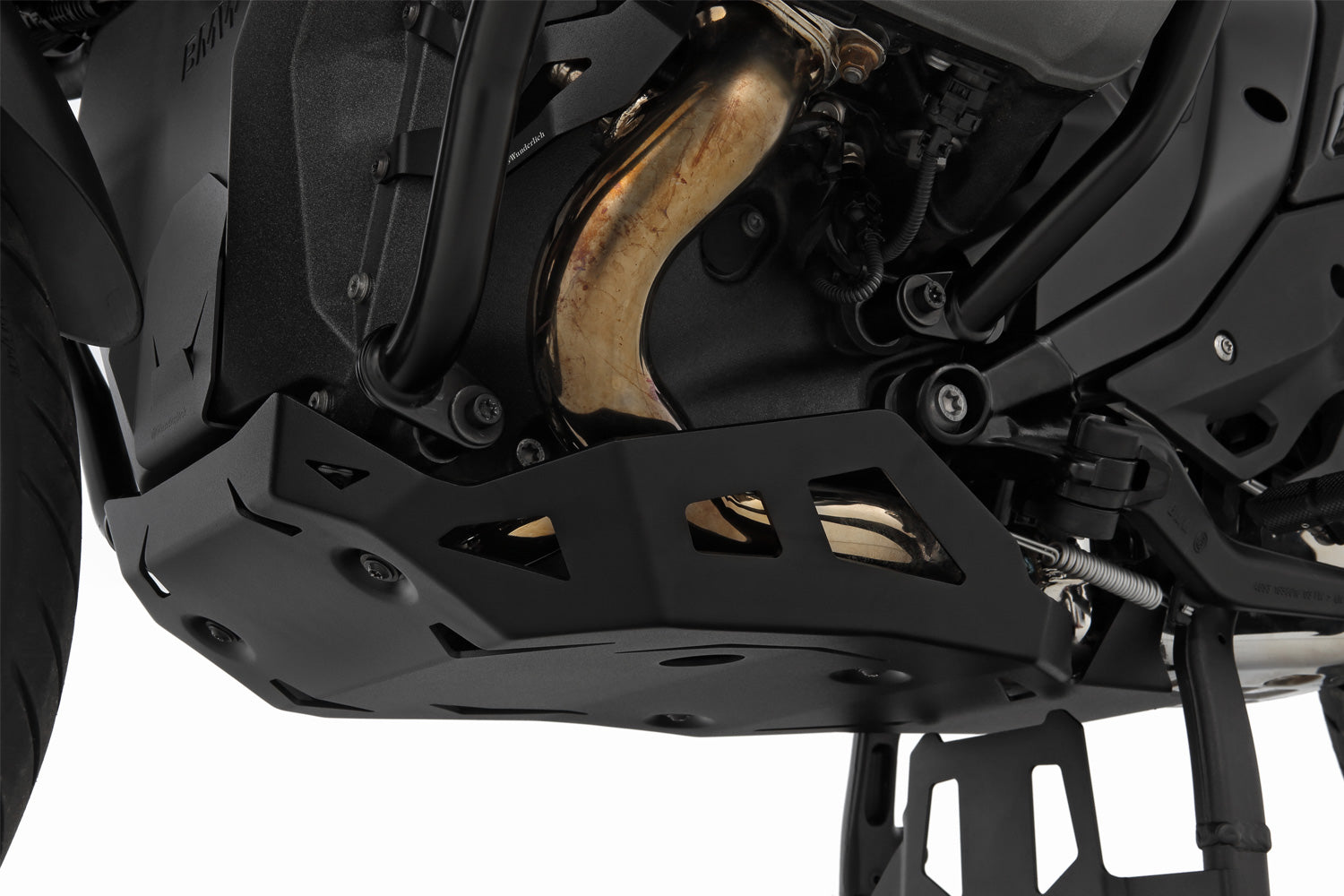

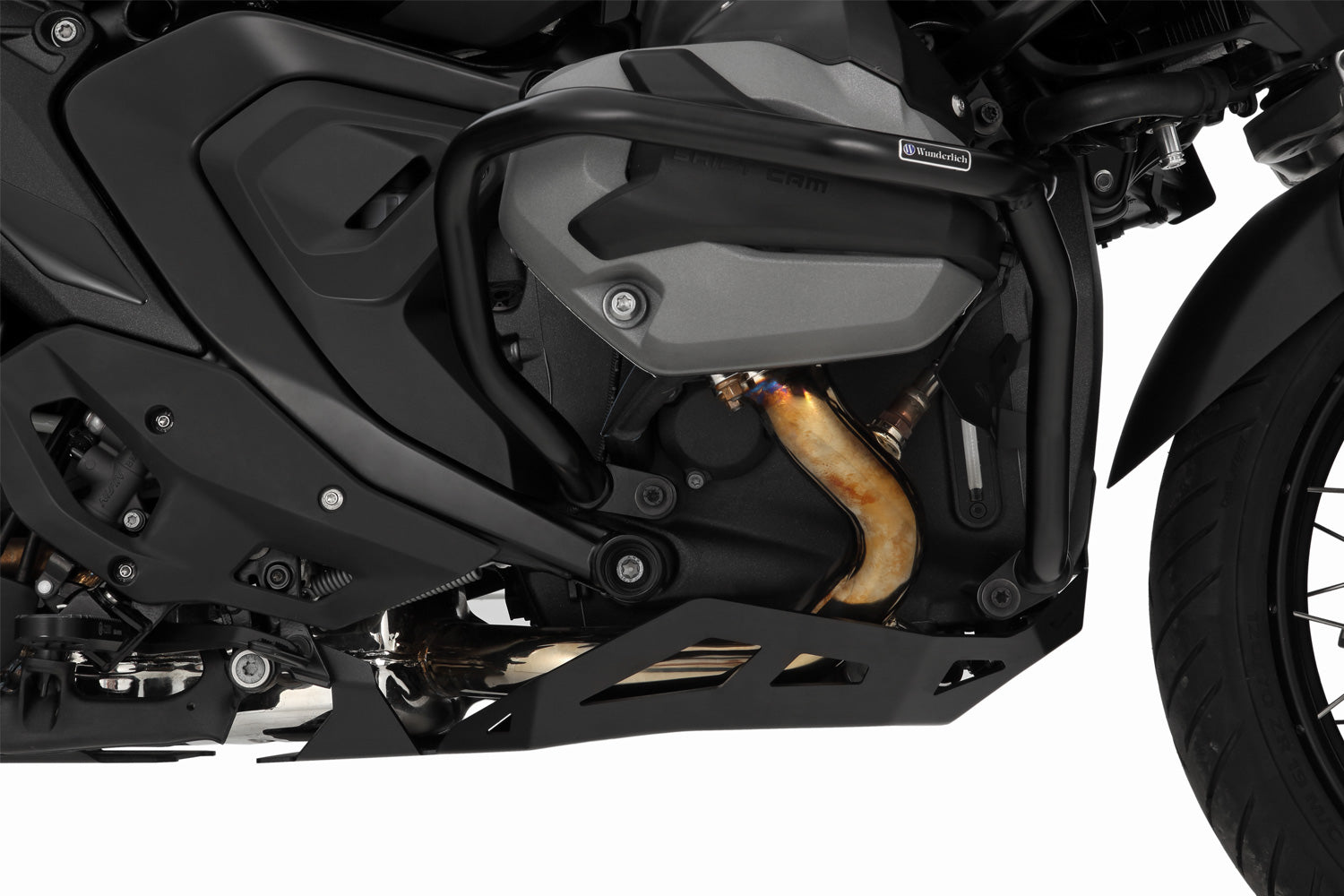

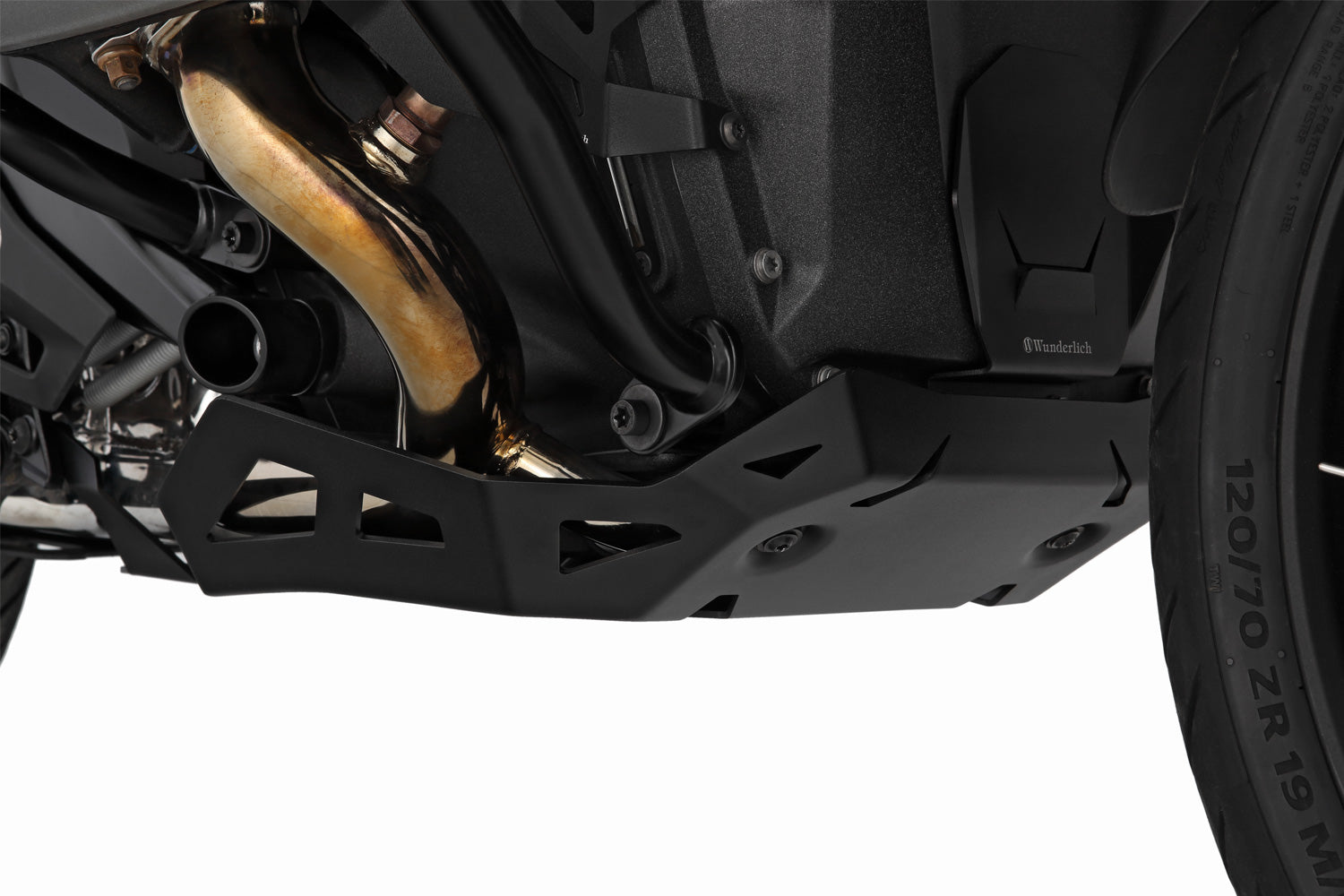

Wunderlich ULTIMATE EXTREME engine guard – comprehensive protection for engine housing, oil sump and manifolds of the BMW R 1300 GS and GS Adventure

Function and product features

• Black, high-quality engine guard designed in Wunderlich Tool Design
• Optimal structural and functional integration
• Provides comprehensive, maximum protection for engine housing, oil sump and manifolds
• Form-optimised with reduced contact surface, for ambitious, off-road-oriented riders
• Maximum ground and lean angle clearance
• The shape reduces the risk of unpleasant levering or snagging in off-road terrain
• Ventilation openings support cooling
• Angled impact plates significantly reduce the risk of stone chips and foreign objects
• The engine guard reduces thermal stress on the engine by deflecting splash water thrown up by the front wheel
• Collected water and spray can freely drain away
• External forces and torques are absorbed by fastening elements that simultaneously dampen vibrations
• Unrestricted accessibility for maintenance (e.g. oil drain)
• High component rigidity and mechanical stability
• Corrosion-resistant
• Simple, secure installation at the designated mounting points of the original engine guard

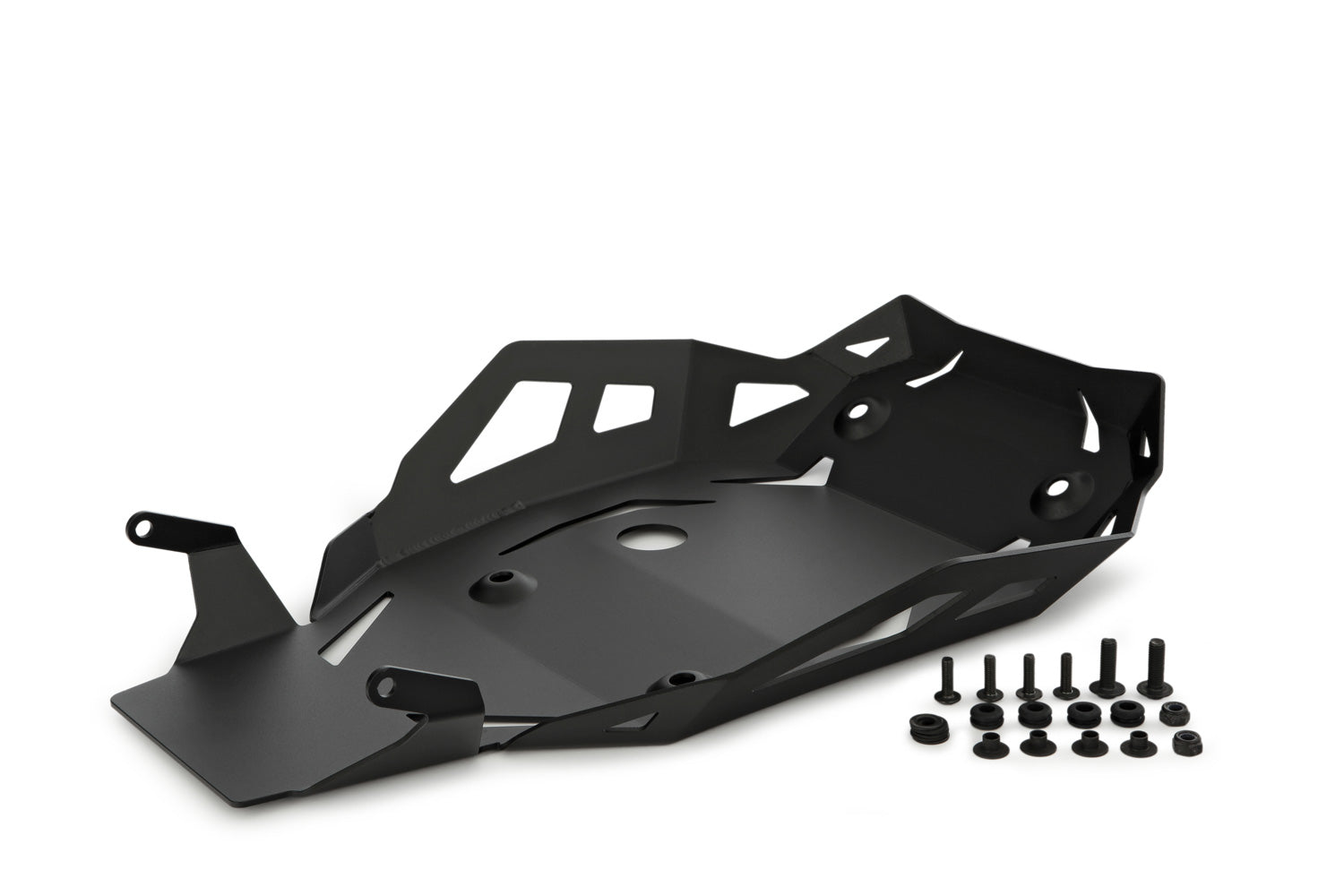

• Includes mounting material
• With Wunderlich brand logo

Technical data

• Material

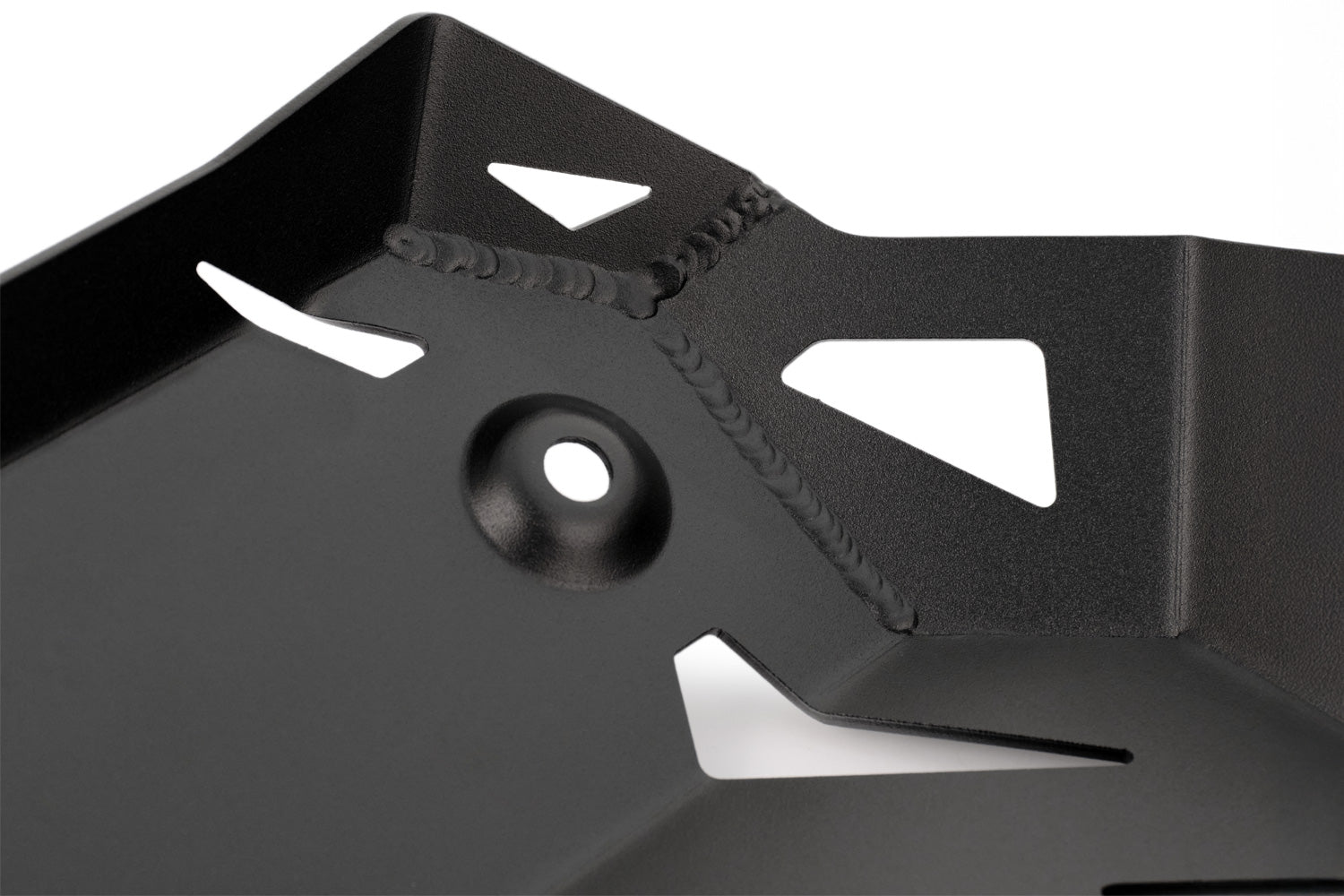

  • High-strength aluminium, precisely manufactured, black with integrated vibration-damping fastening elements, countersunk screws, high-quality powder-coated
• Dimensions
  • Width 410 mm
  • Length 530 mm
  • Material thickness 4 mm
• Colour
  • Black

Your Wunderlich benefits

• Wunderlich product. Small series. Handmade.
• Wunderlich design. Functional and integrated.
• Made in Germany
• Wunderlich 5 years warranty.

Tough’n’Rough – the functional integral design of the Wunderlich ULTIMATE EXTREME engine guard

The functional design and structural integration of our ULTIMATE EXTREME engine guard protect engine housing, oil sump and manifolds. It hugs the unit without restricting ground or lean angle clearance. The shape reduces the risk of unpleasant levering or snagging in off-road terrain, whether caused by branches, rubble or rocks. Openings ensure that water absorbed during river crossings can drain away freely.

The angled impact plates deflect stones or foreign objects thrown up by the front wheel, significantly reducing the risk of damage to the manifolds and engine. Another advantage: it deflects splash water downwards, especially when the engine is hot, considerably reducing thermal stress on the engine housing, manifolds and seals.

The complex component shape and material thickness result from the off-road orientation, enabling high structural rigidity and mechanical stability. The result is a resistant, uncompromising and form-optimised engine guard for ambitious, off-road-oriented riders. Countersunk screws offer no contact surface and underline the Edge Design Adventure look perfectly.

The high-quality engine guard is securely bolted using precise, pre-existing connection points on the motorcycle. External forces and torques are distributed to reduce load and torque peaks. Vibrations are effectively absorbed. Typical of Wunderlich: unrestricted accessibility for maintenance has been considered – for example, a dedicated opening allows unobstructed draining of the engine oil. The aluminium engine guard is corrosion-resistant. With Wunderlich brand logo.
