Clutch/brake line extension for handlebar riser
Clutch/brake line extension for handlebar riser
Part Number: SKU:70861-000
Fits Models:
Multistrada V4 | Multistrada V4 Pikes Peak | Multistrada V4 Rally | Multistrada V4 S | DesertXWhen fitting a handlebar riser,we recommend extending the standard hydraulic lines for the brake and the clutch.

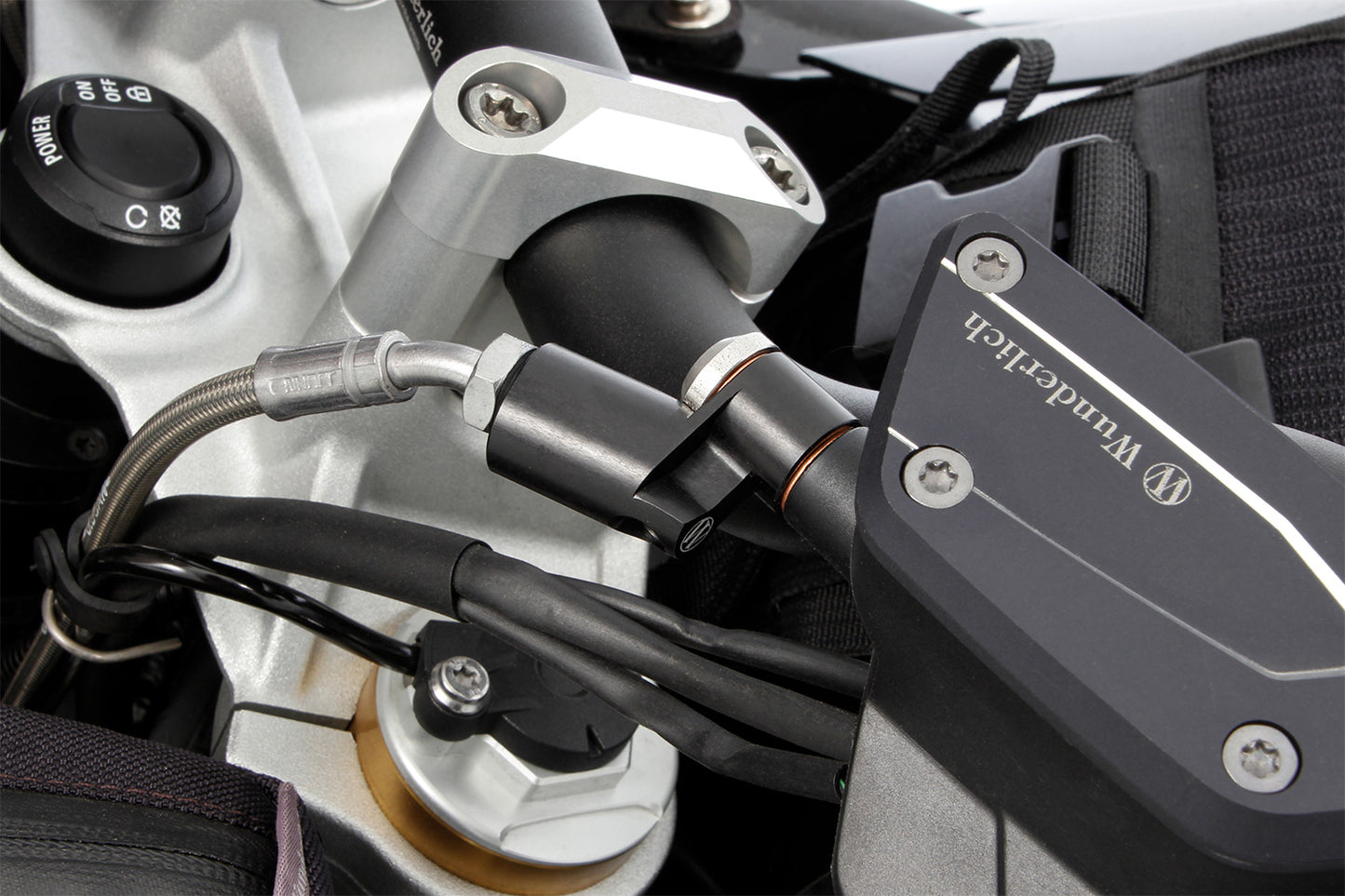

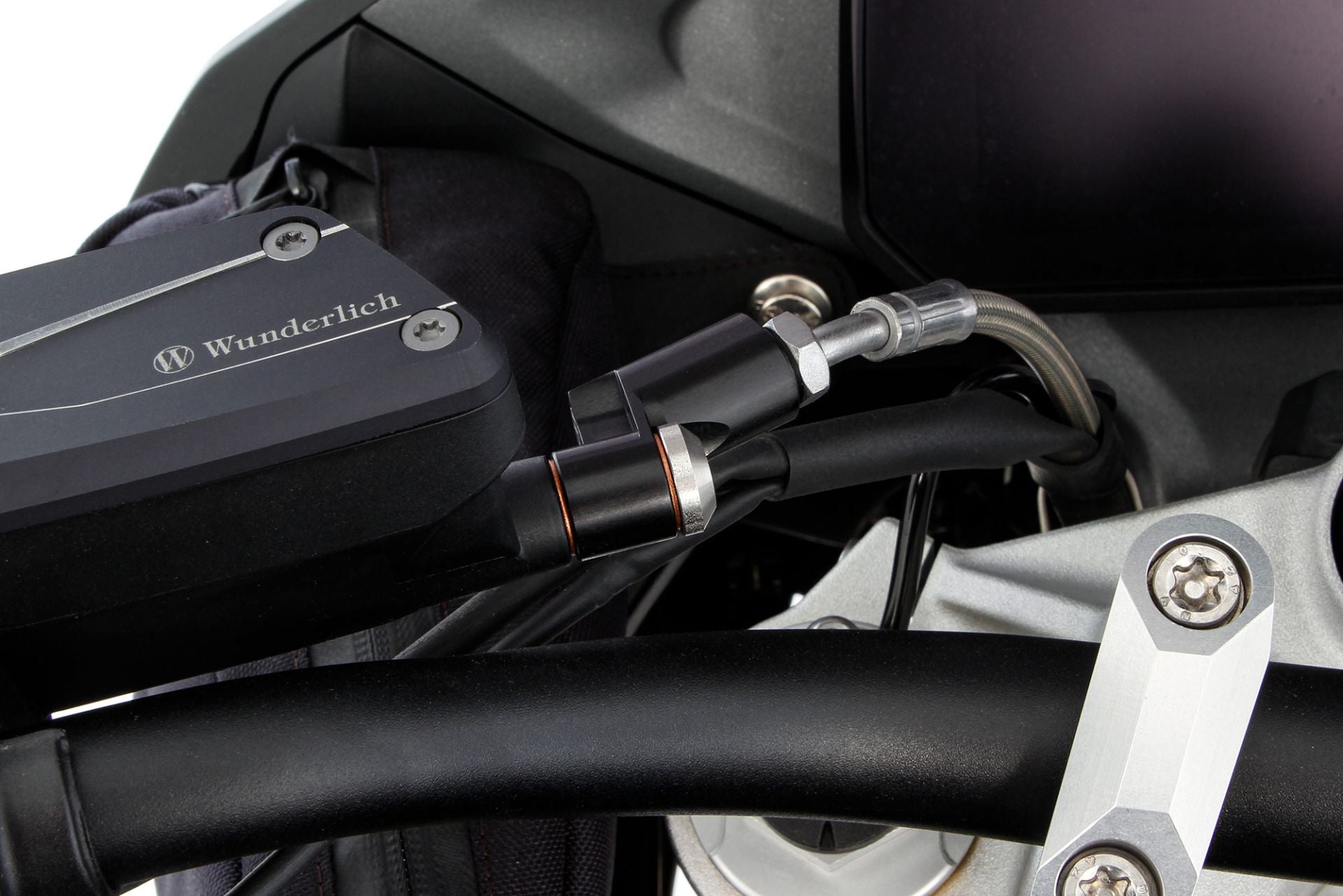

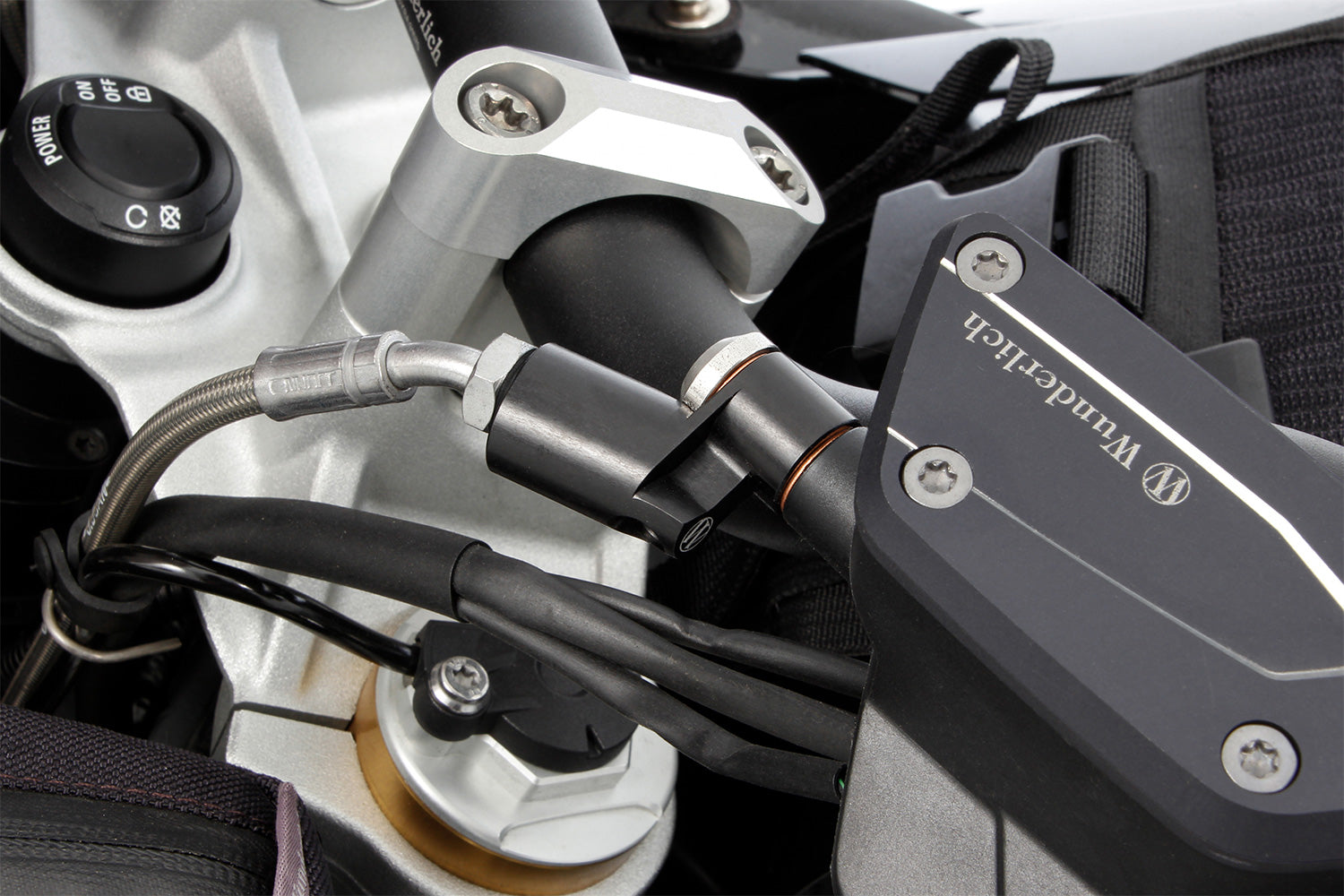

This high-grade hydraulic hose extends the break or clutch line by around 115 mm,which has proven effective in practice. We include the necessary hollow screw and all required seals as standard with the practical adapter. It is fitted between the brake pump or the clutch perch and the original hydraulic hose. We have gently angled the connection for the brake pump or clutch perch. This simplifies connection of the supply lines,which can then be routed and connected without tension.
Using the extension saves both the time and money that would otherwise be required for producing and routing new (approved) hydraulic lines.
Note on installation and your safety: Fitting the adapter requires specialist expertise. It should therefore only be fitted and connected by specialist personnel or a specialist workshop.
Facts
Function
- Tried and tested,functional,high-grade extension for the brake or clutch line (extension: approximately 115 mm)
- Recommended when fitting a handlebar riser
- Using the adapter saves both the time and money that would otherwise be required for producing and routing new and longer (approved) hydraulic lines
- The edges of the adapter have been rounded off slightly on one side to ensure tension-free routing and connection of the lines

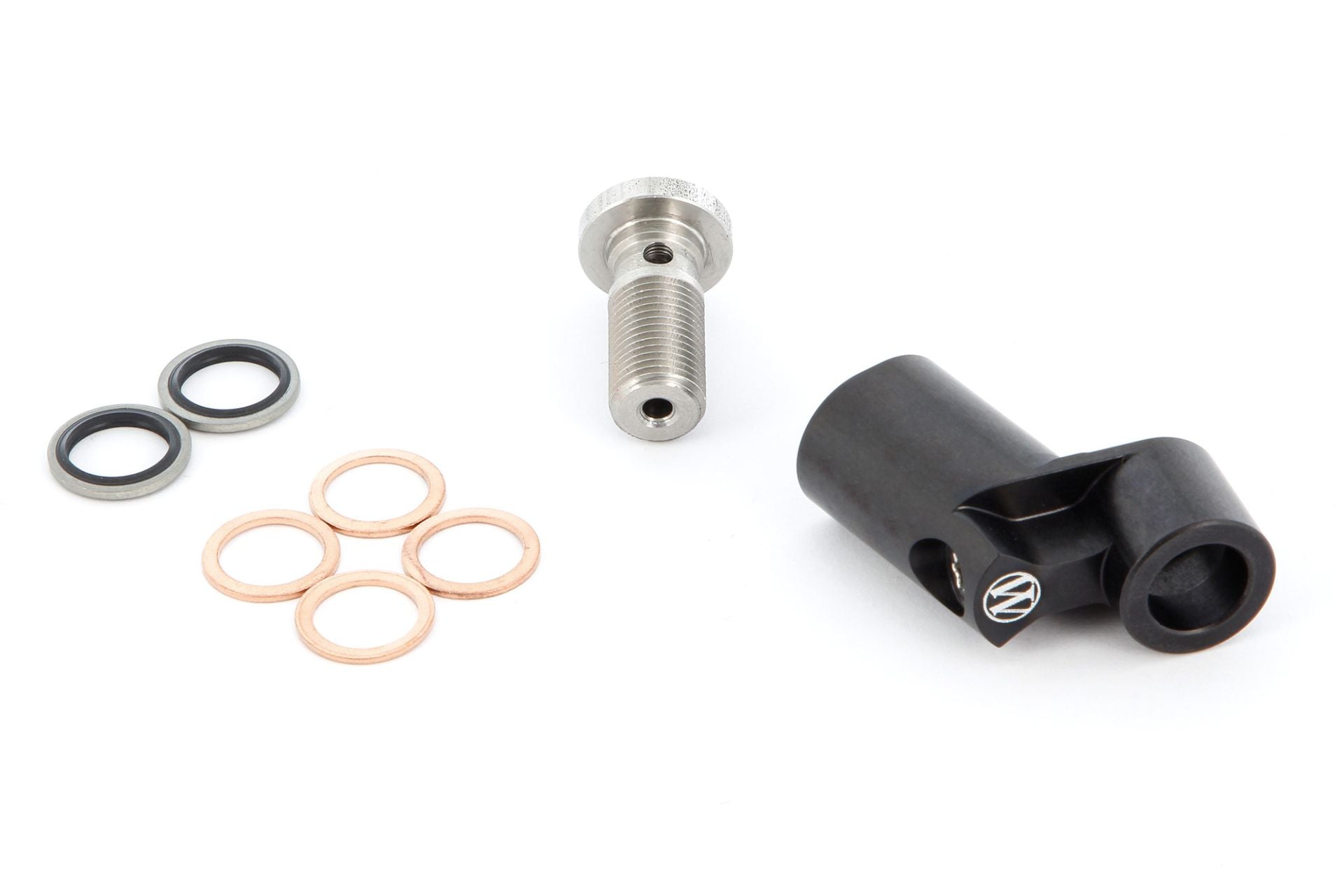

- Includes all necessary components,such as a hollow screw and seals
- Comes with parts certificate
Specifications
- Material
- Stainless steel,high-grade finish
- Dimensions
- Extension: 115 mm
Your Wunderlich benefits
- Made in Germany
- 60-day right to return – try it for yourself with zero risk!
Product type: | Ergonomics |
---|
