With Preventive Rollover Protection

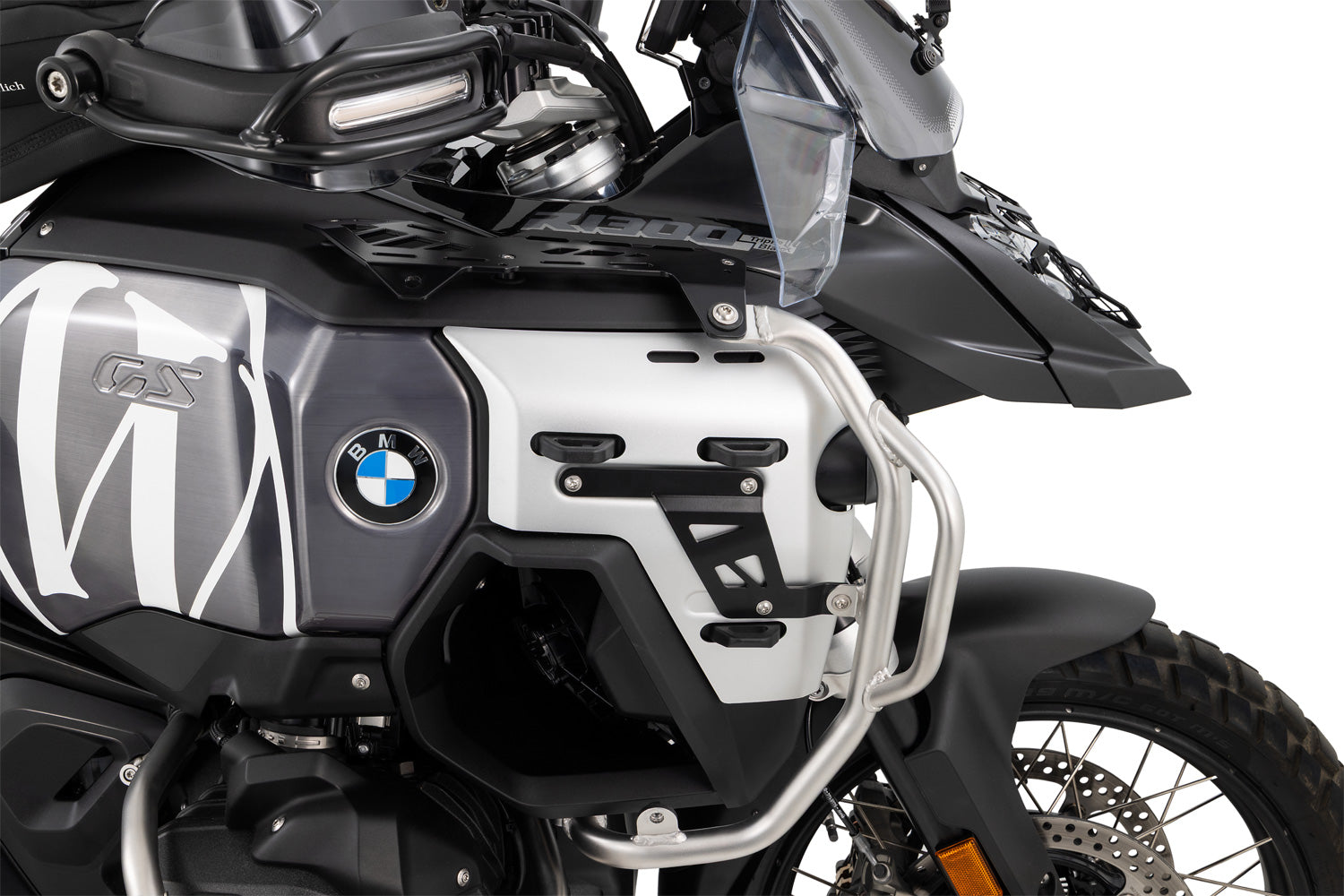

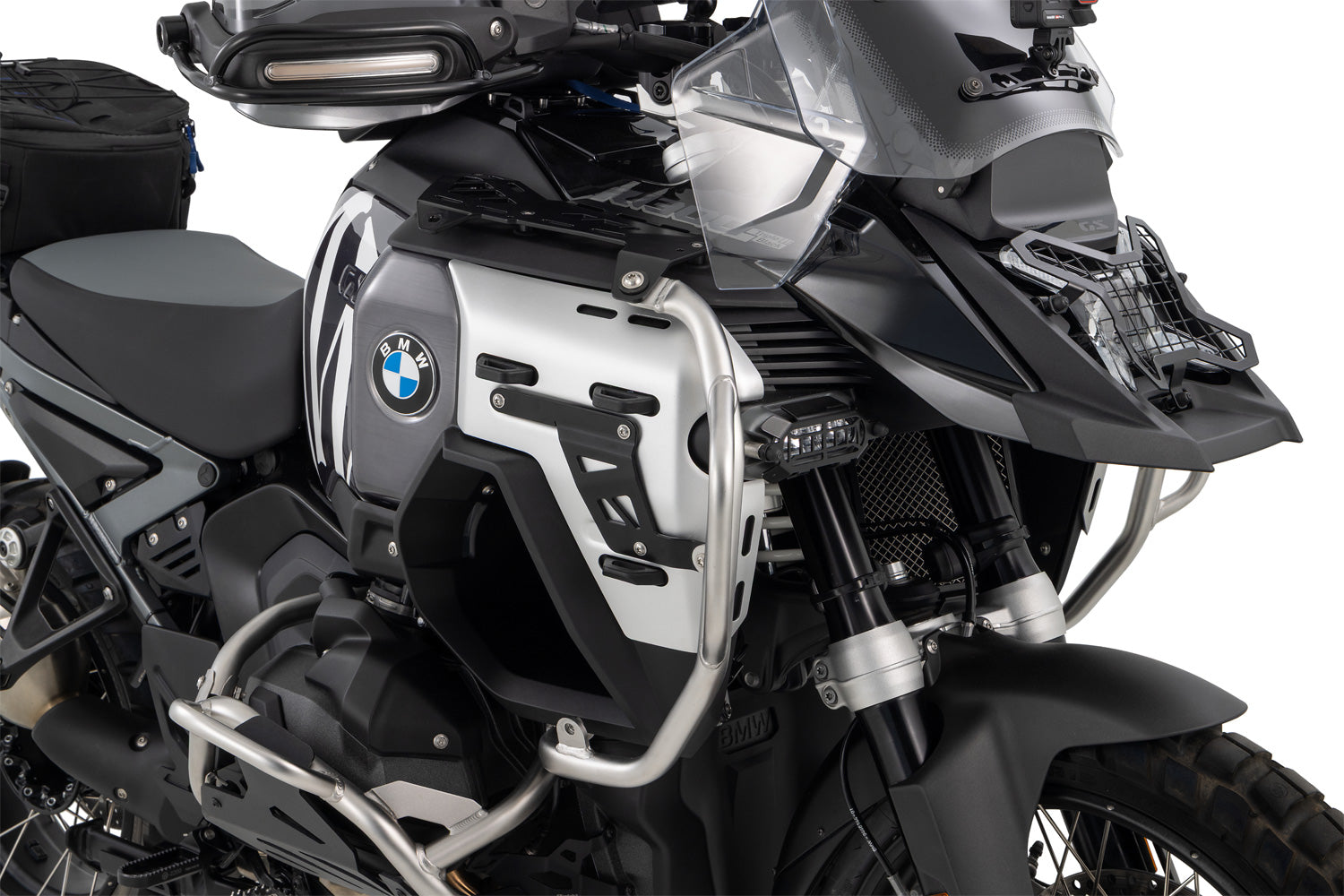

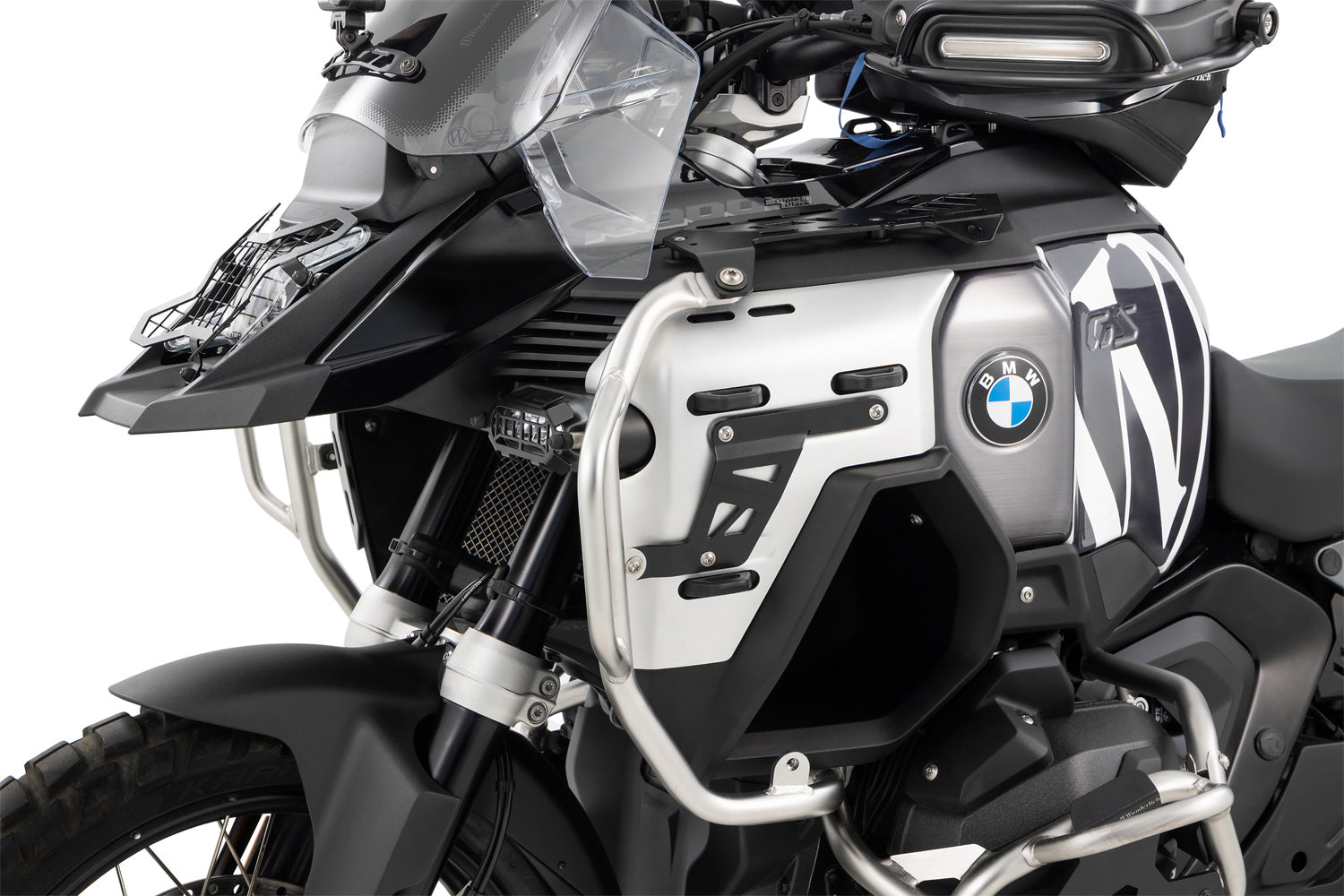

The Wunderlich ULTIMATE Tank Protection Bar – Perfect, Maximum Protection for the Tank and Side Panels of the BMW R 1300 GS Adventure

Function and Product Features

• Wunderlich ULTIMATE tank protection bars are uncompromisingly designed for their protective function in adventure riding

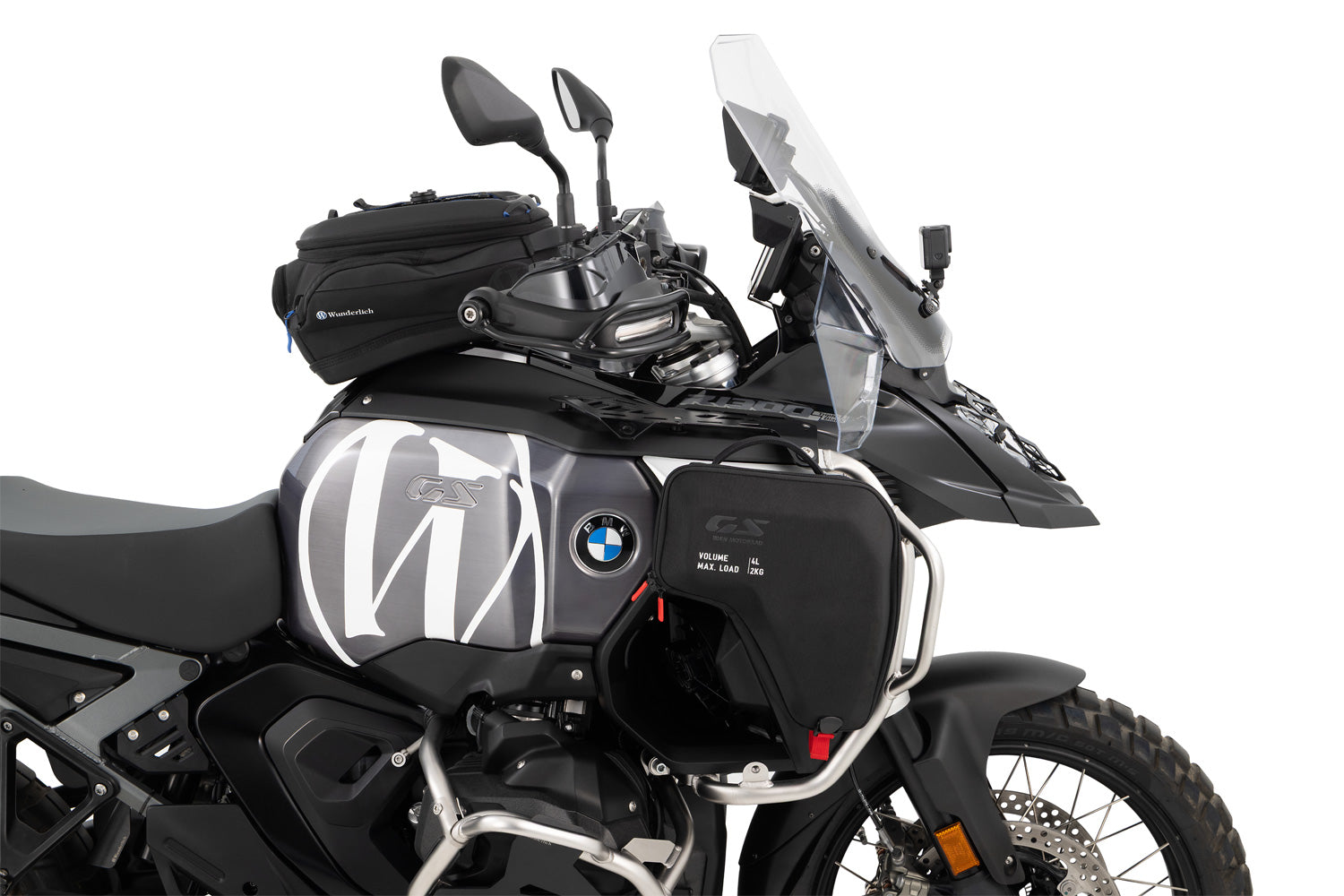

• They offer maximum protection for the exposed water coolers, the side panels of the tank, the front section with auxiliary lights, and to some extent, the side tank bags
• The two distinctive, laterally projecting tube segments serve to prevent rollovers

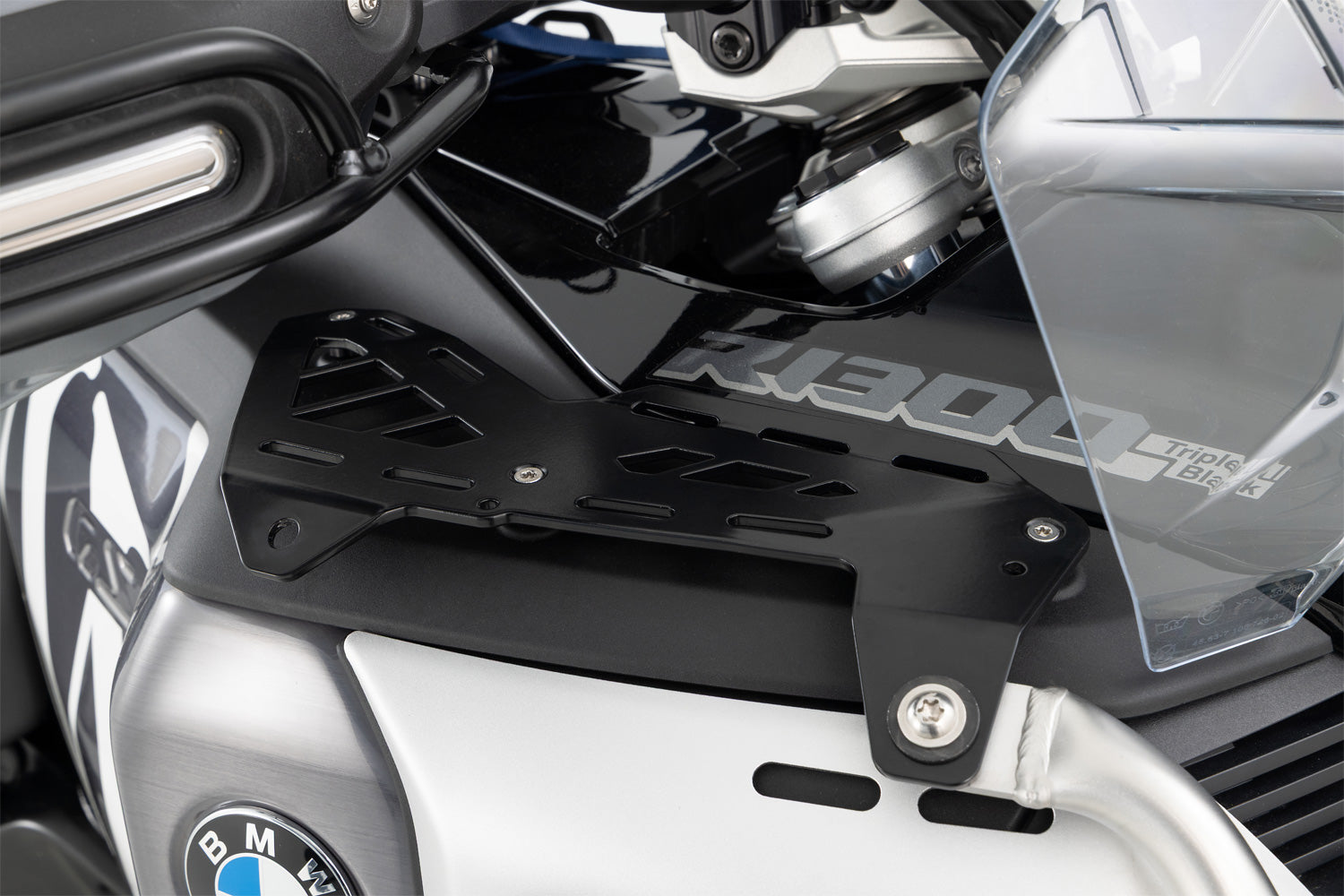

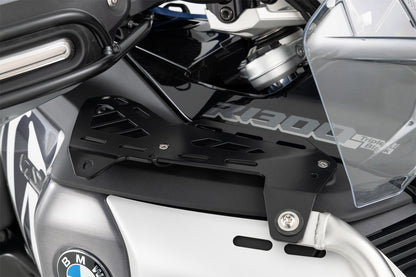

• The cleverly integrated RackBase is a visual highlight and also serves as the upper mounting point of the front tank protection bar and the rear reinforcement strut – it also functions as a tray or compact rack equipped with lashing openings
• The structure ensures that forces and moments acting from the outside are evenly distributed to suitable mounting points on the right and left, reducing the impact of force and torque peaks
• An additional bracket is integrated into the side tank fairing
• Thanks to its rigid tube construction and the use of selected materials, the ULTIMATE tank protection bar provides maximum protection
• The well-thought-out all-around protection concept contributes to enhanced passive safety
• Compatible in combination with
  • the original engine protection bars and
  • the Wunderlich engine protection bars ULTIMATE and ULTIMATE PRO
  • the original cylinder head guards
• Perfect, integrated, model-specific design – the routing of the bar is precisely adapted to the contour of the front section
• Perfect fit
• Simple Plug & Play installation: straightforward mounting at existing connection points, including detailed installation instructions

Note

• The Wunderlich ULTIMATE plus reinforcement bar #13216-003 complements the ULTIMATE tank protection bar and provides neatly integrated additional protection for the flanks of the BMW R 1300 GS Adventure

Note on Compatibility

• Compatible with the original BMW engine protection bars
• Compatible with our engine protection bars when using connection kit #13212-000 (please order in this case)
  • ULTIMATE PRO (#13200-00x)
  • ULTIMATE (#13201-00x)

Technical Data

• Material
  • Protection Bar
    • High-tensile precision stainless steel tubing with excellent elongation at break, carefully handcrafted, radii precisely formed on CNC tube bending machines and cleanly welded with a precise seam finish. The stainless steel surface is carefully finished, glass bead blasted, and finally electropolished
  • RackBase
    • Made from aluminium, carefully finished
      • Black powder-coated
  • Side Bracket
    • Made from aluminium, carefully finished
      • Black powder-coated
• Dimensions
  • Tubing diameter: 25 millimetres
• Colour
  • Protection bar structure: stainless steel, RackBase and side brackets: black powder-coated – bicolour

Your Wunderlich Advantages

• Wunderlich premium product
• Small production runs. Handmade
• Wunderlich design. Functional and integrated
• Made in Germany
• Wunderlich 5-year warranty

ULTIMATE Tank Protection Bars Are Uncompromisingly Designed for Adventure Riding and Ensure Enhanced Passive Safety On and Off the Road

Experienced world-touring adventure riders know it well: there are days when the motorcycle tips over more than once, simply because the conditions are so extreme that they’re hard to imagine in civilised Europe with its developed road network. Or because, due to physical exhaustion, heat, or cold, the strength and stamina to hold the bike upright simply run out. Beyond civilisation, it becomes even more essential to travel with reliable equipment that can handle the material stress involved and withstand it without failure – because staying mobile, in motion, and independent can be crucial for minimising personal risk.

Definitely built for adventure riding. Made in Germany.
ULTIMATE – when it really matters.

This Wunderlich ULTIMATE tank protection bar is specially developed for adventure riding and reliably protects not only the tank but also the fairing, front section, and highly exposed water-cooling units. In combination with the Wunderlich rollover protection system, it forms a well-thought-out all-round protection concept for passive safety: in the event of a fall or tip-over, the acting forces are optimally distributed via the protection bar structure to the robust mounting points, thereby reducing force and torque peaks. Visually, the bar integrates seamlessly into the Adventure’s design and emphasises its distinctive appearance. The protection bar is made of 25 mm precision stainless steel tubing. The tube segments are shaped on CNC tube bending machines and then cleanly welded.
With our ULTIMATE protection bars, maximum protective performance and product design take centre stage. The tank protection bar protects and enhances your BMW in a truly premium way.
